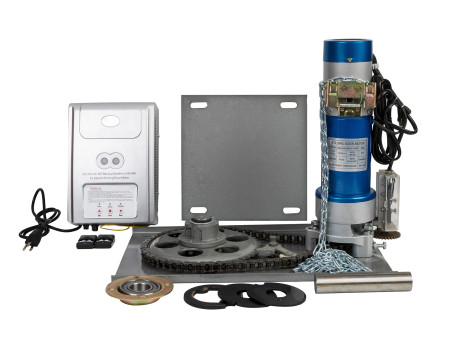

DC Rolling Door MotorQD-500-DC24V

Product Description

Application Area:

Our motors are applied to shopping centers, warehouse, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing with electric and manual function.

Working Environment & Conditions
1) Working Area: Indoor or similar places
2) Environment Temperature:-20ºC~50ºC
3) Relative Humid it: ≤90%
4) Voltage of Power: Fixed voltage× (1 ±10%)V
5) Frequency of Power:50Hz±2Hz
6) No strong electromagnetic interference source, explosive medium, corroding metal medium around.
7) Short working hour system, continuous operation should not over 6 minutes.

Feature
1) Shell: Aluminium alloy , solid and light but durable and easy to install.

2) Low noise: low energy consumption, small vibration.

3) Limit System: Correct control , easy operation , and big control range.

4) Anti-dropping device: Preventing accidental injury and ensure safety.
5) Transmitters: It outfits with remote control.

Details

1) 100% copper wiring makes Motors with larger capacity, stable current and durable character.

2) 4 Micro switches in limit utensil for correct control, easy operation and big control range.

3) An anti-dropping device in bracket board to prevent accidental injury and ensure safety.

4) Motors can be customized based on your requirements.

Packing & Delivery

Packing: One set in two cartons, plastic bag inside, carton outside.
( The outside cartons can be customized according to customers' requirements, like printing logo or words on it or according to your own design to print it.)

Loading Capacity: A 20 GP container can hold about 520-550 PCS AC motor, if DC motors, 480-520PCS is available.

Delivery time: We will delivery the goods in 10-45 days after we receiving your deposit, which according to your exact quantity and requirements~

Company Information

Zhangzhou JinAn Electric&Machine Co., Ltd. is a manufacturer who has been specializing in developing and producing all kinds of rolling door motors since 1991. Through the introduction of advanced production technology and equipment and a strong quality oriented workforce, we have gained CE and ISO9001 quality certification. With strict quality control under 100% full inspection to ensure all products in good quality on you hand. Meanwhile, we have professional engineer team to offer technical support for our customers. With the features of elegant design, stable quality, strong power, quiet running, easy installation and long service life, our motors are popular with friends from Middle East, Asia, South America, etc.
We consistently insist our company motto "Pursuing quality, permanent and continuous service" to satisfy our customers from different countries. With the positive attitude of keeping-improving and the spirit of striving, exploring and being responsible, we sincerely hope to open long-term, mutual reliance businesses with friends from all over the world!
